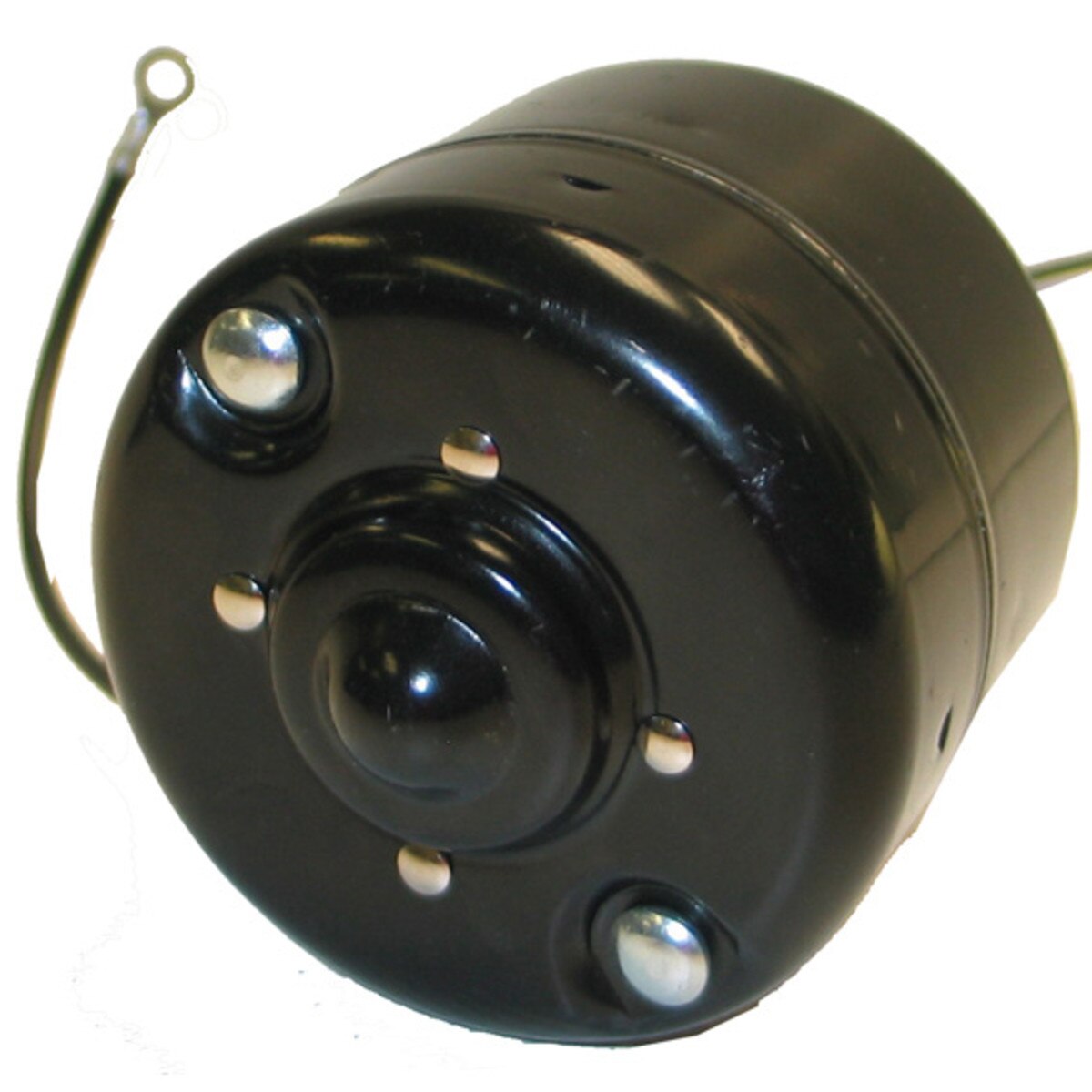

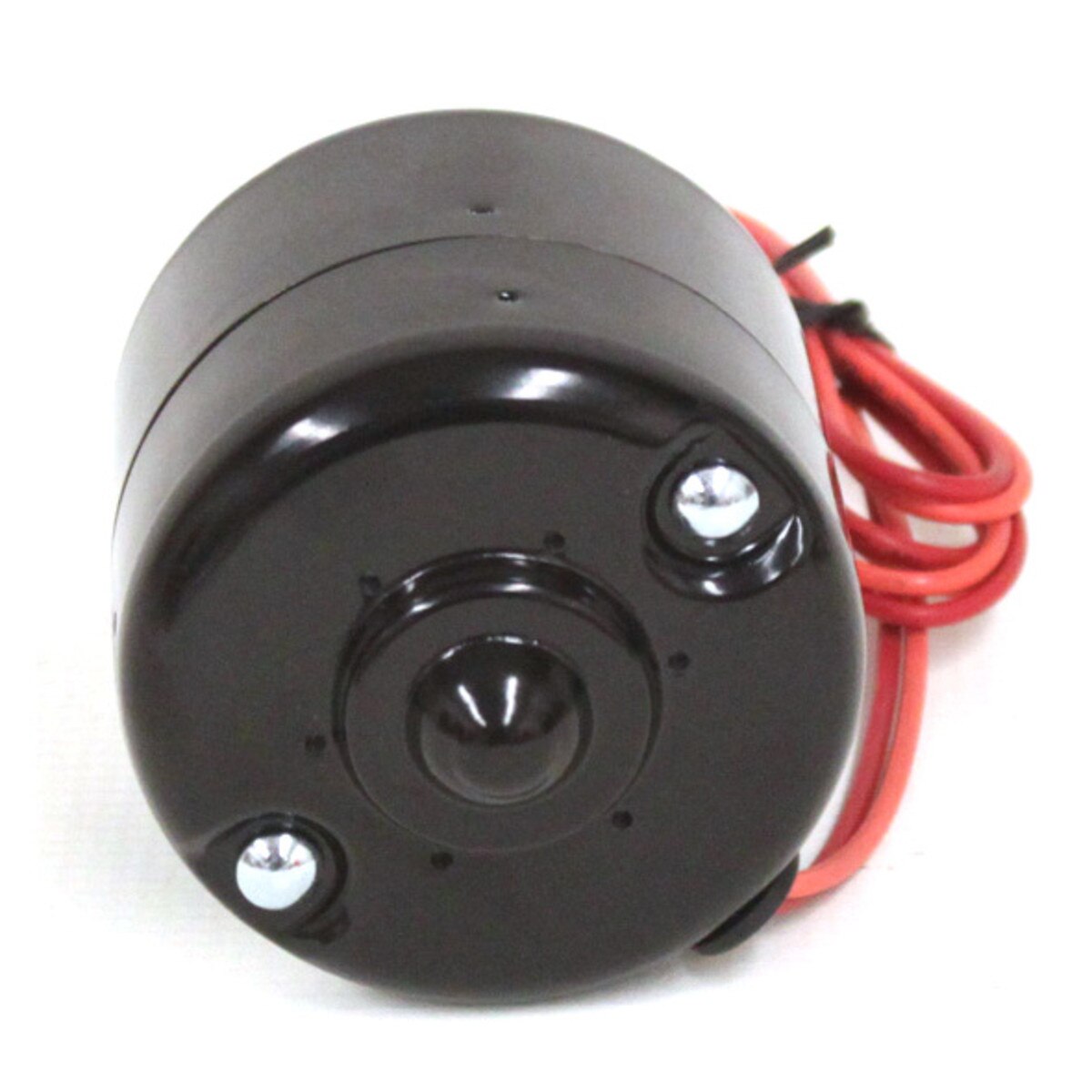

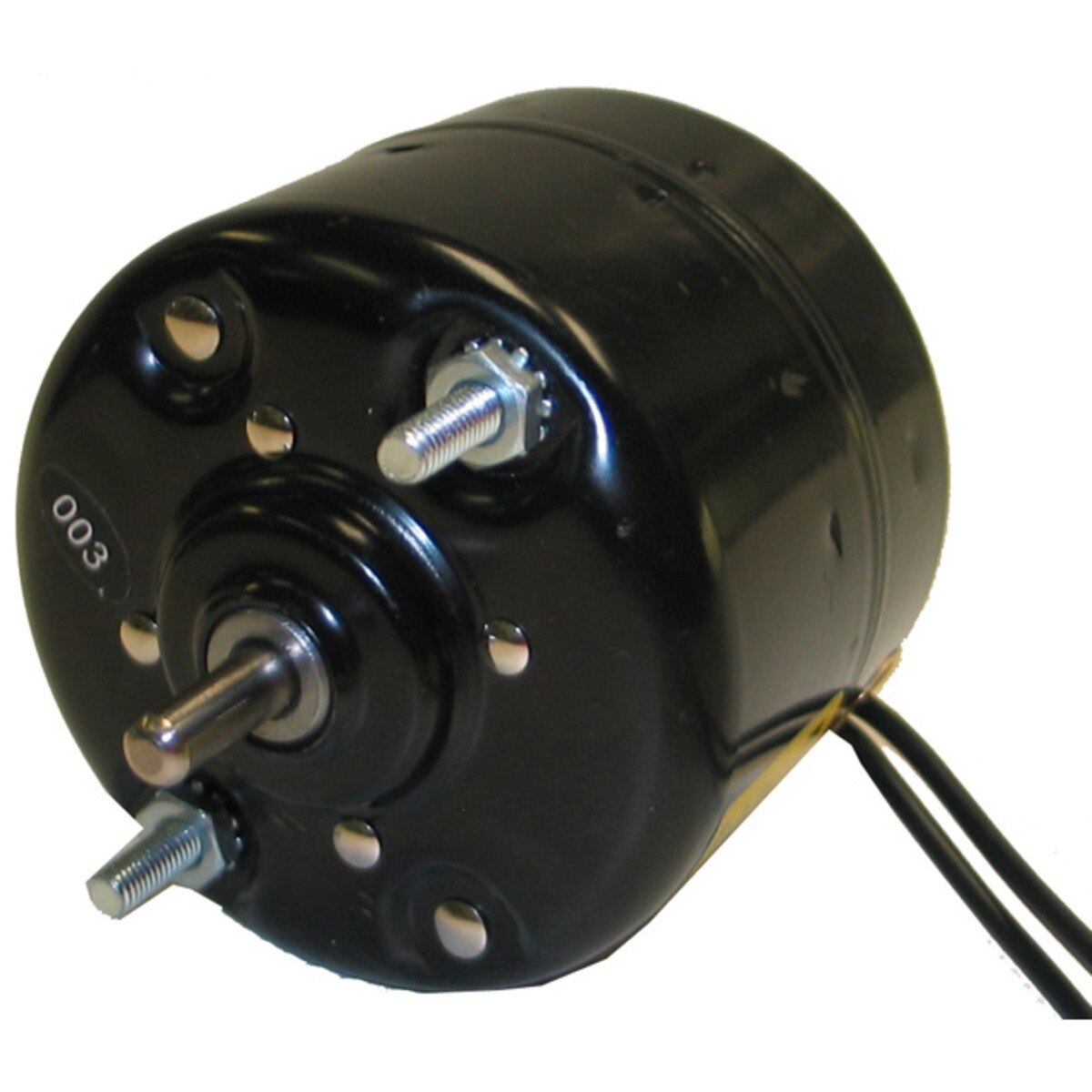

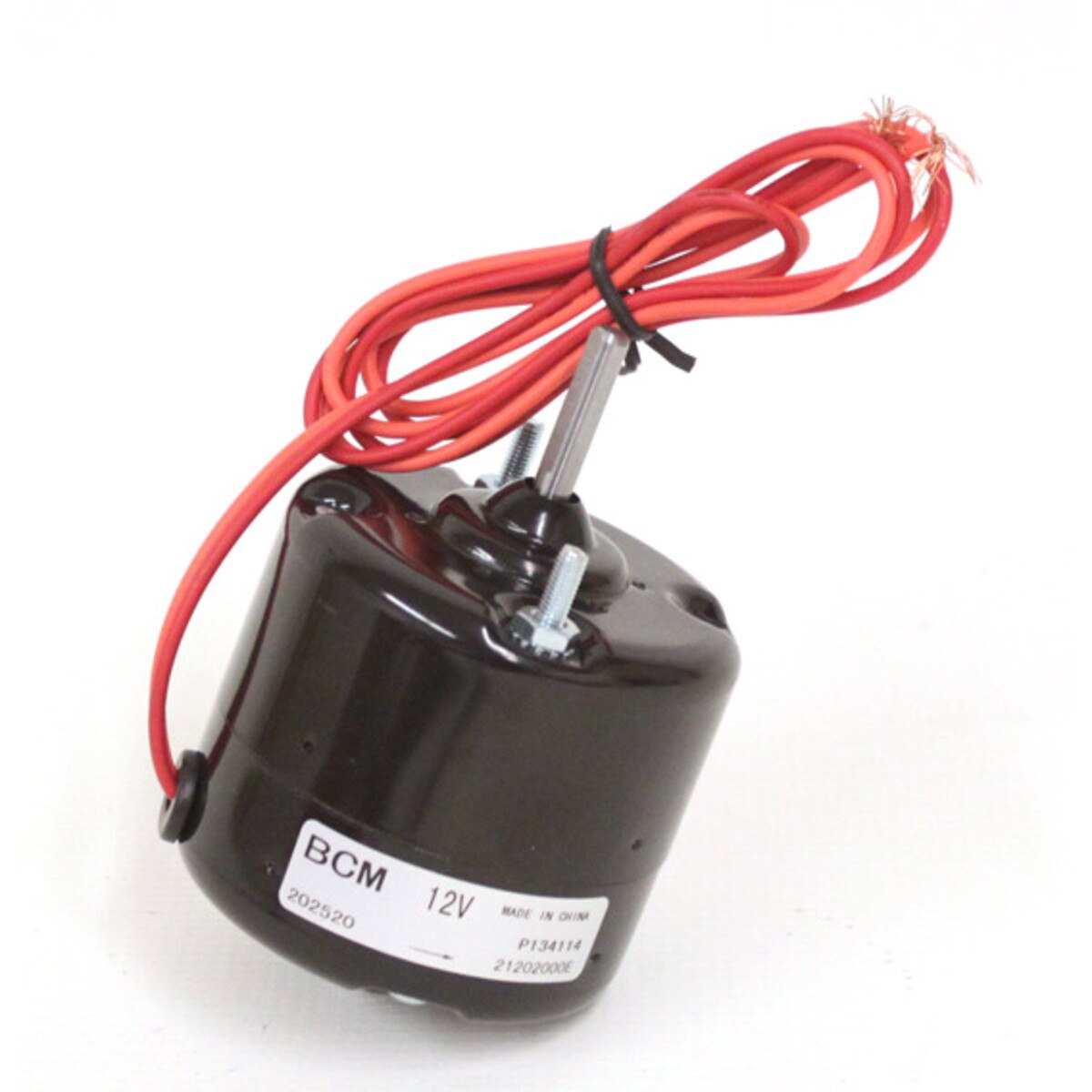

DLDF2025 Defroster Fan Motor

$74.48
SKU: DLDF2025

Clearance Item - Not returnable

Back

Details

Amps:10 amp max
Connector:Bare leads
Diameter:3" (76.2mm)
Grounds:Internally
Length:2 7/8" (72.1mm)
Motor Length:2 9/16" (64mm)
Mount:Stud
Rotation:CCWSE
Shaft Diameter:1/4" (6.4mm)
Shaft Length:1 3/16" (30.1mm)
Speed:2
Stud Span:2 5/16" (58.7mm)
Vent:NV
Voltage:12V
Wires:2
