7190K SMC Service Kit Electric 7 Series Stop Arms and Crossing Arms

$69.44
SKU: 7190K

Sourced Item - Not returnable

Back

Details

SKU: 7190K
Cross References: 000197 197 000198 198 005057 5057 104 3039 71094 3038 7318 7197 5122 137S 7027 T2100-B
Producer: Safefleet
Bus: All
Application: Service hardware kit for Safefleet electric 7 Series stop arms and crossing arms

Features:

  • 7 Series electric service kit - maintenance hardware kit used to service Safefleet electric 7 Series stop arms and crossing arms :contentReference[oaicite:1]{index=1}

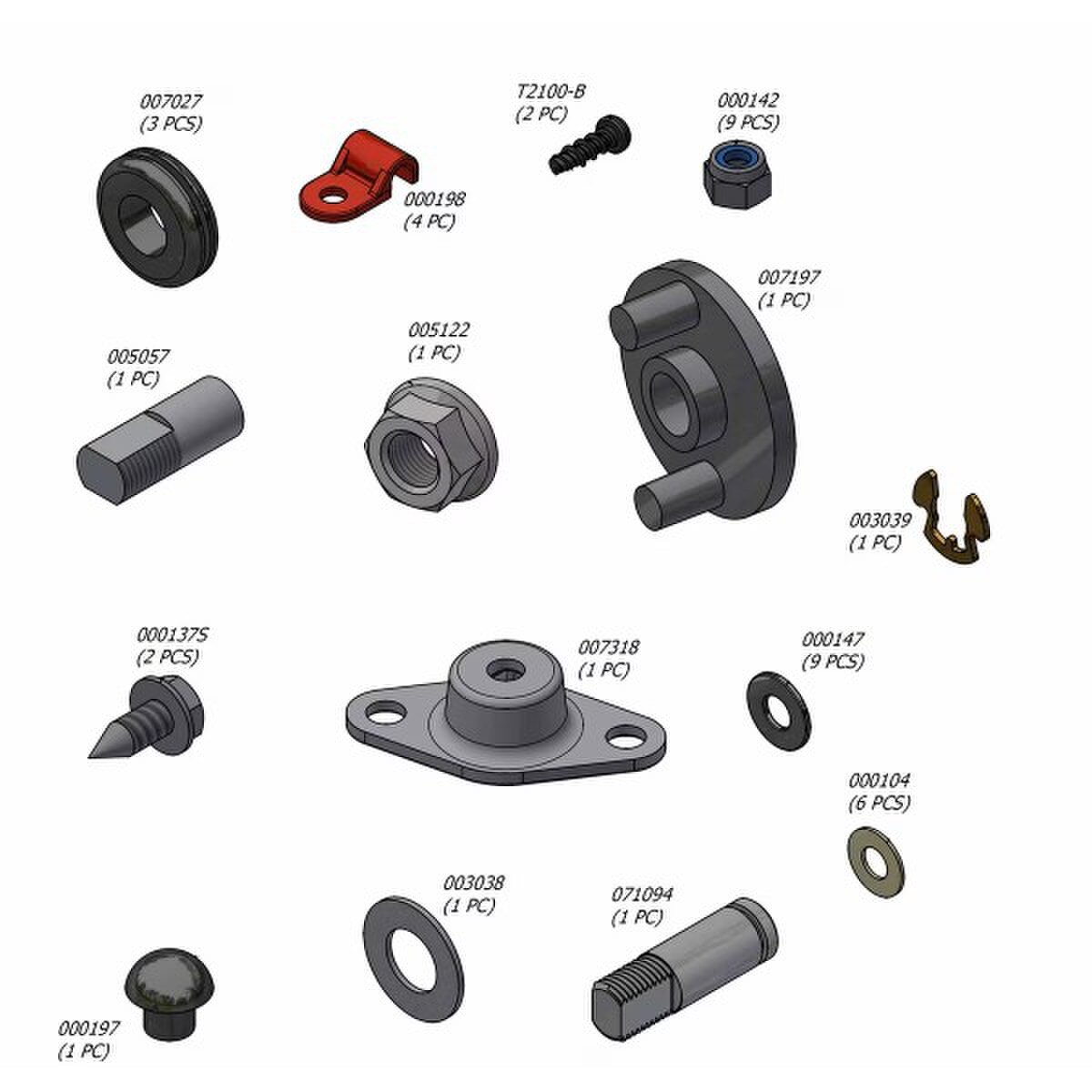

  • Kit parts are no longer sold separately - includes the service components listed below as a single kit
  • Washer 104 - WASHER- .265 ID X.056 OD x .03 NYL WSHR (Qty 6)
  • Retaining ring 3039 - RING- .375ID X .752OD X .05THK RETAINING (Qty 1)
  • Hinge pin 71094 - HINGE PIN, X/A (Qty 1)
  • Washer 3038 - WASHER- .51 ID X .88D X 1/8THK,FLAT, STL (Qty 1)
  • Motor shaft hub 7318 - HUB- MOTOR SHAFT, (TAPER), STL, EC & PNT (Qty 1)
  • Nylatron bushing 7197 - BUSHING- NYLATRON, 1/2" I.D. (Qty 1)
  • Whiz nut 5122 - NUT- 1/2-20, WHIZ W/ WSHR, 300 SSTL (Qty 1)
  • Inverted unit hinge pin 5057 - PIN- INVERTED UNIT HINGE (Qty 1)
  • #10 screw 137S - SCREW- #10 X .5 HXHD TYPE A, 410 SS (Qty 2)
  • EPDM grommet 7027 - GROMMET-EPDM 60 DURO, 0.5"IDX1.0625"OD (Qty 3)
  • Torx hi/lo screw T2100-B - SCREW- #10 X .54" TORX HI/LO, SS, BLK (Qty 2)
