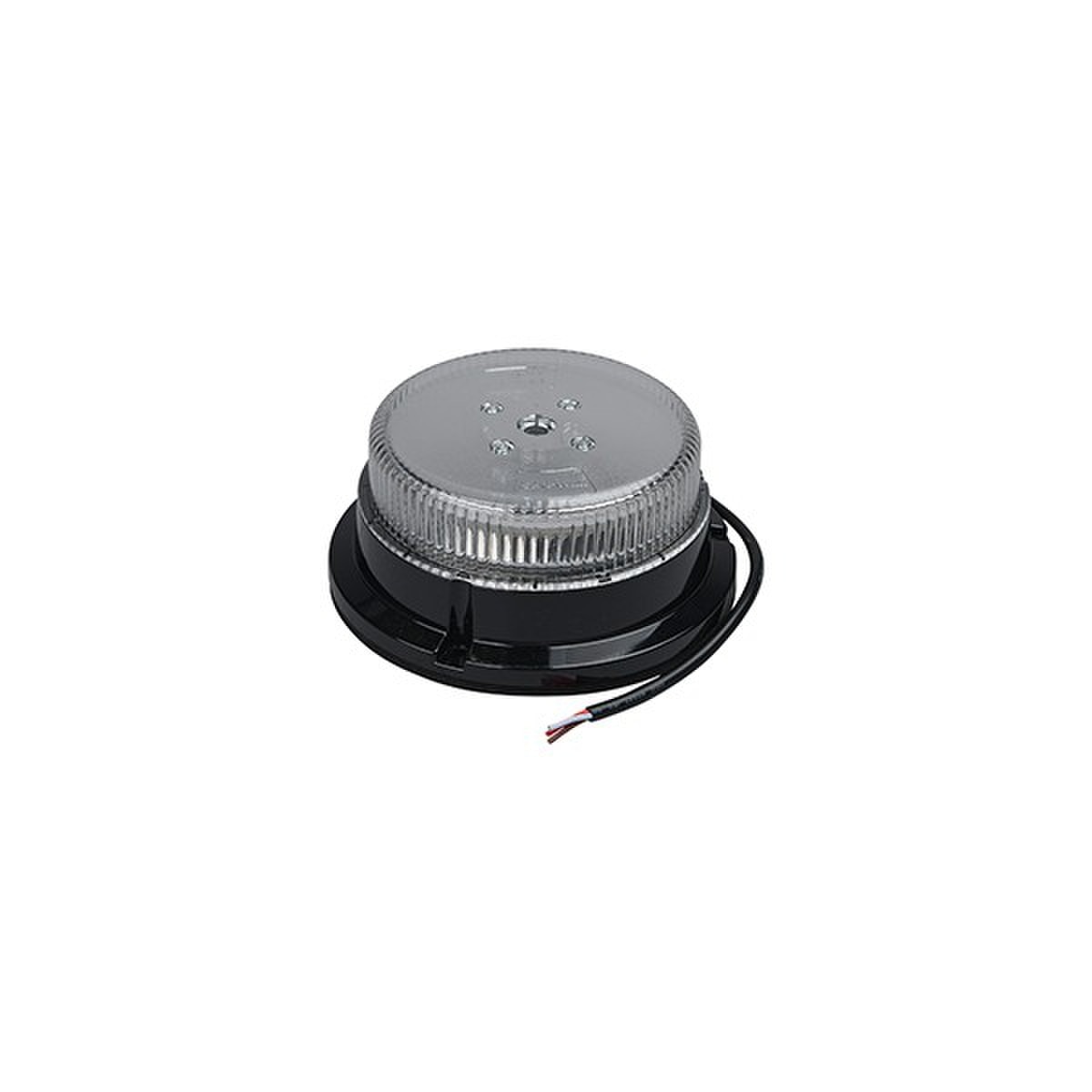

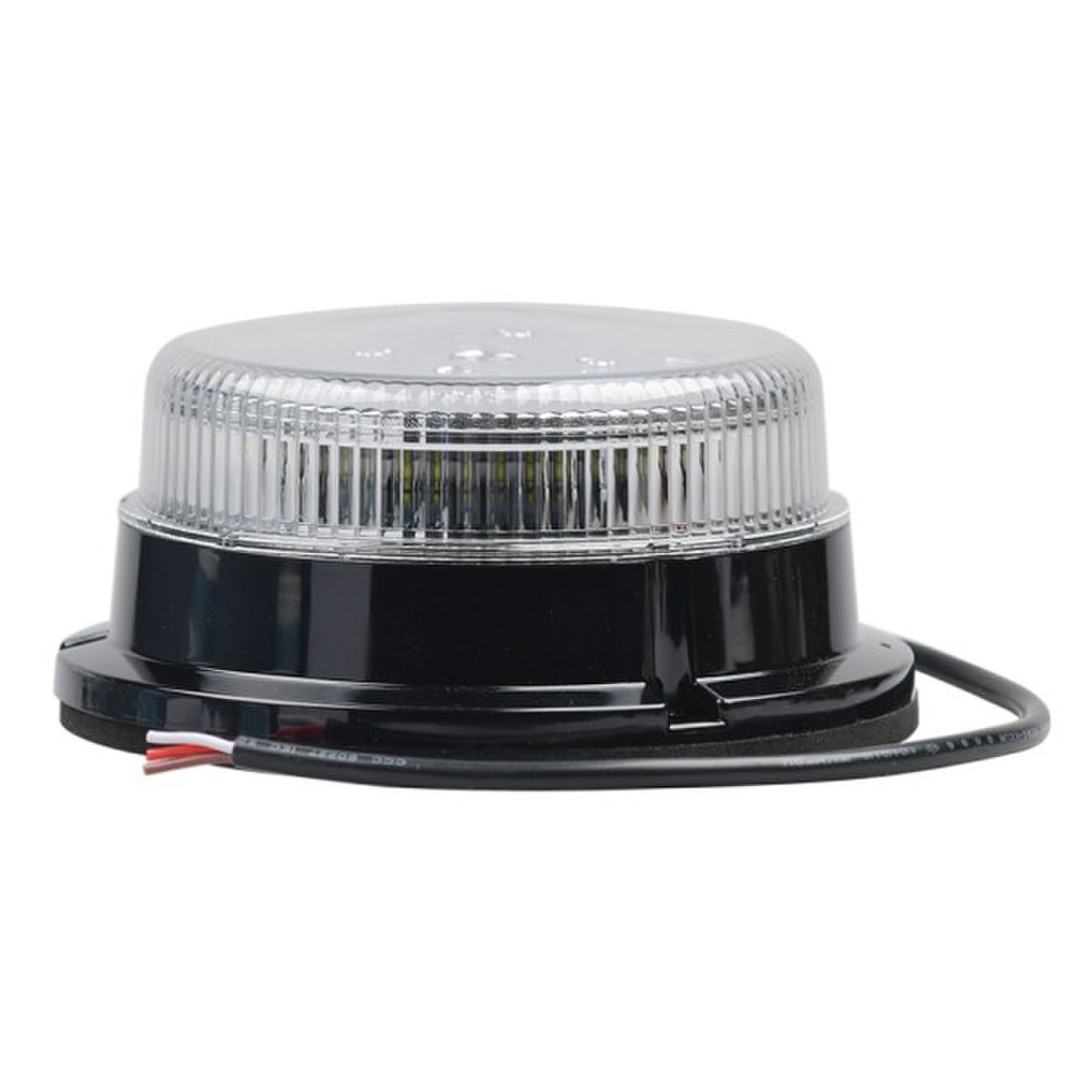

100BC0003 2.5 in Clear LED Rooftop Strobe Light

$112.56
SKU: 100BC0003

In Stock

Available: 4

Back

Details

SKU: 100BC0003
Cross References: BB10071825 10071825 100BC0003-A
Producer: Opti-Luxx
Bus: All
Application: 2.5 in clear LED rooftop strobe light with multiple flash patterns, surface mounting, and SAE Class 1 beacon certification

Features:

  • Clear LED strobe light - compact rooftop beacon providing high visibility warning output
  • 36 LEDs - bright, energy efficient LED array for reliable performance
  • Four flash patterns - selectable flash modes for versatile warning applications
  • Wide voltage range - operates from 10-30 V AC/DC
  • Low current draw - 1.2A @ 13.8V DC and 0.65A @ 28V DC for efficient power use
  • Compact dimensions - approximately 3.12 in high with 6.7 in diameter base

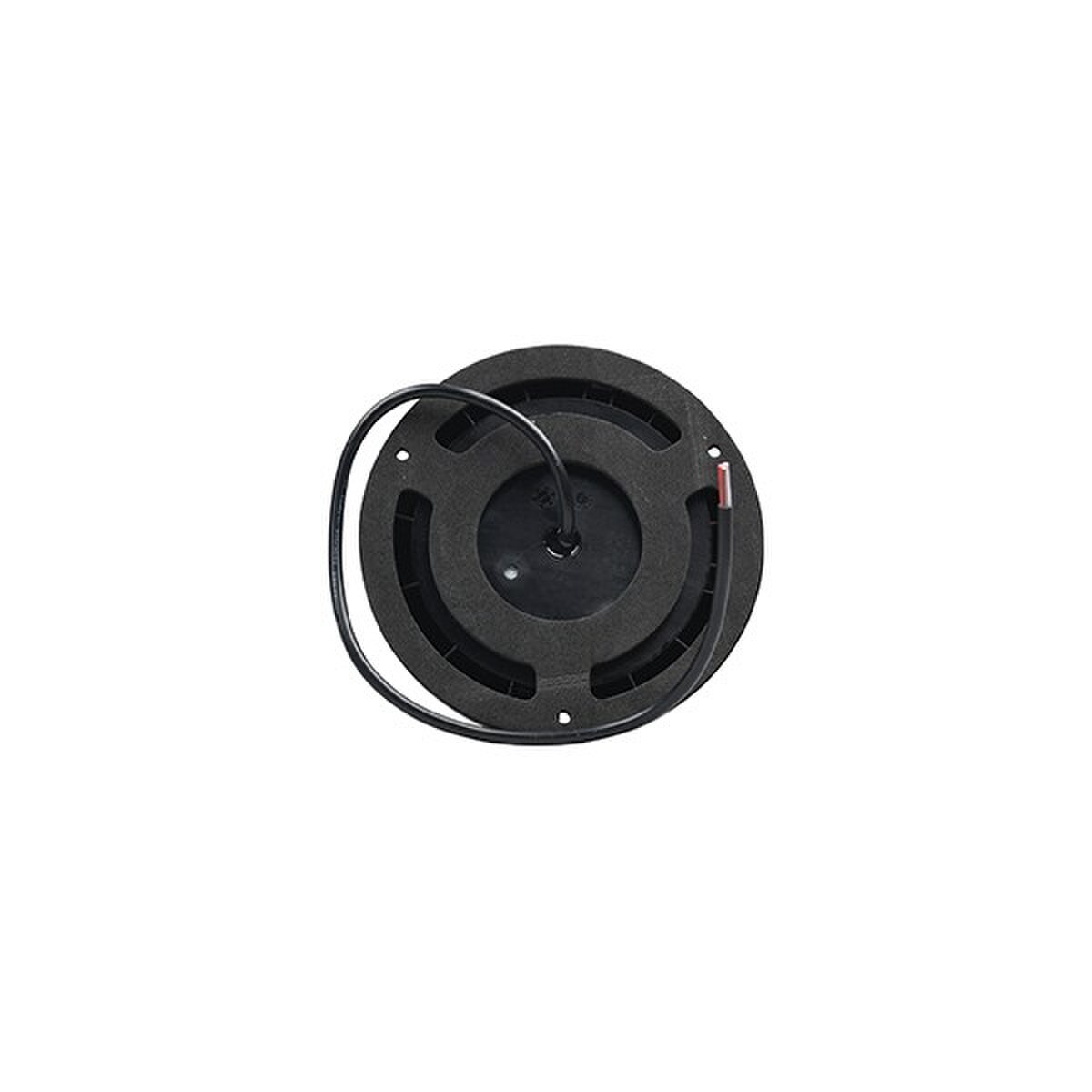

  • Surface mount - three-hole mounting pattern on 6 in base with adhered EVA gasket
  • Durable construction - rated for -40 C to +65 C operating temperature range
  • SAE certified - meets SAE J845/J2139 Class 1 beacon standards and IP67 water and dust resistance

Documentation:
